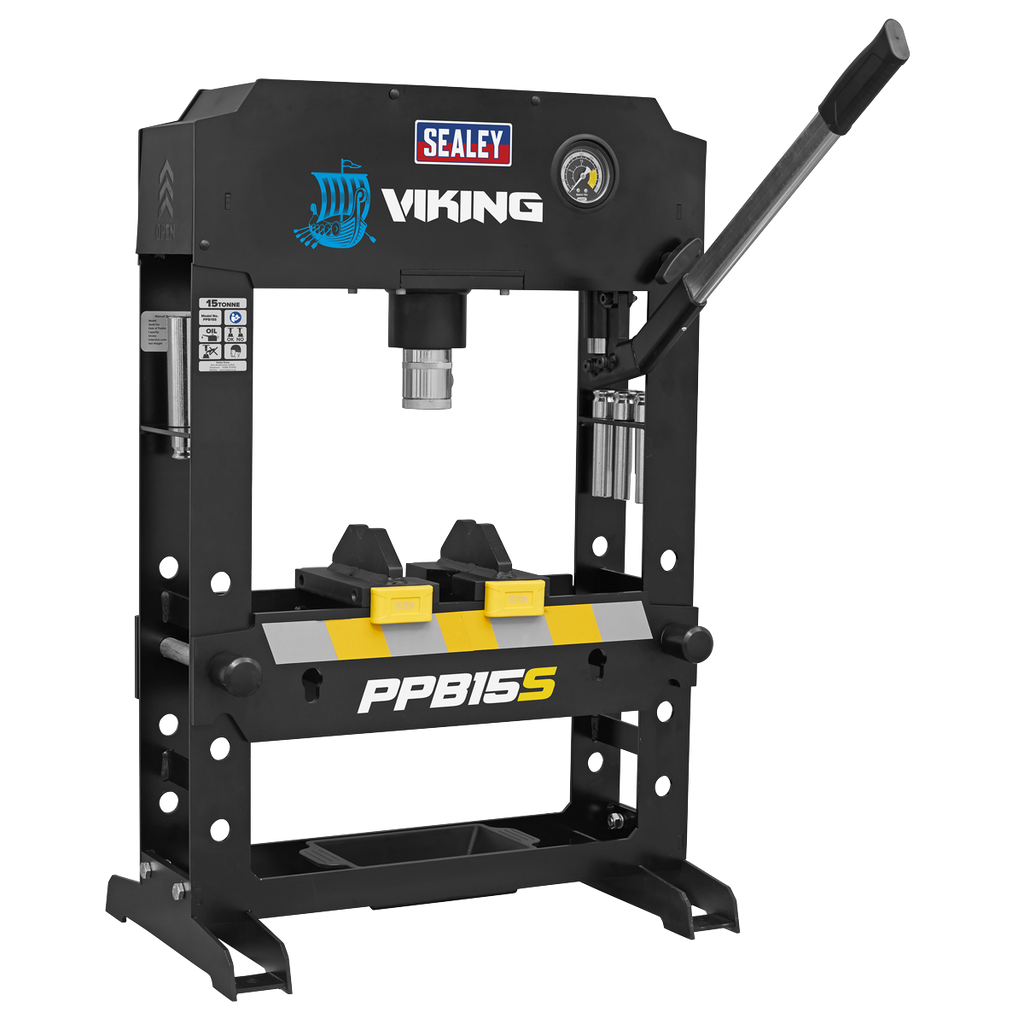

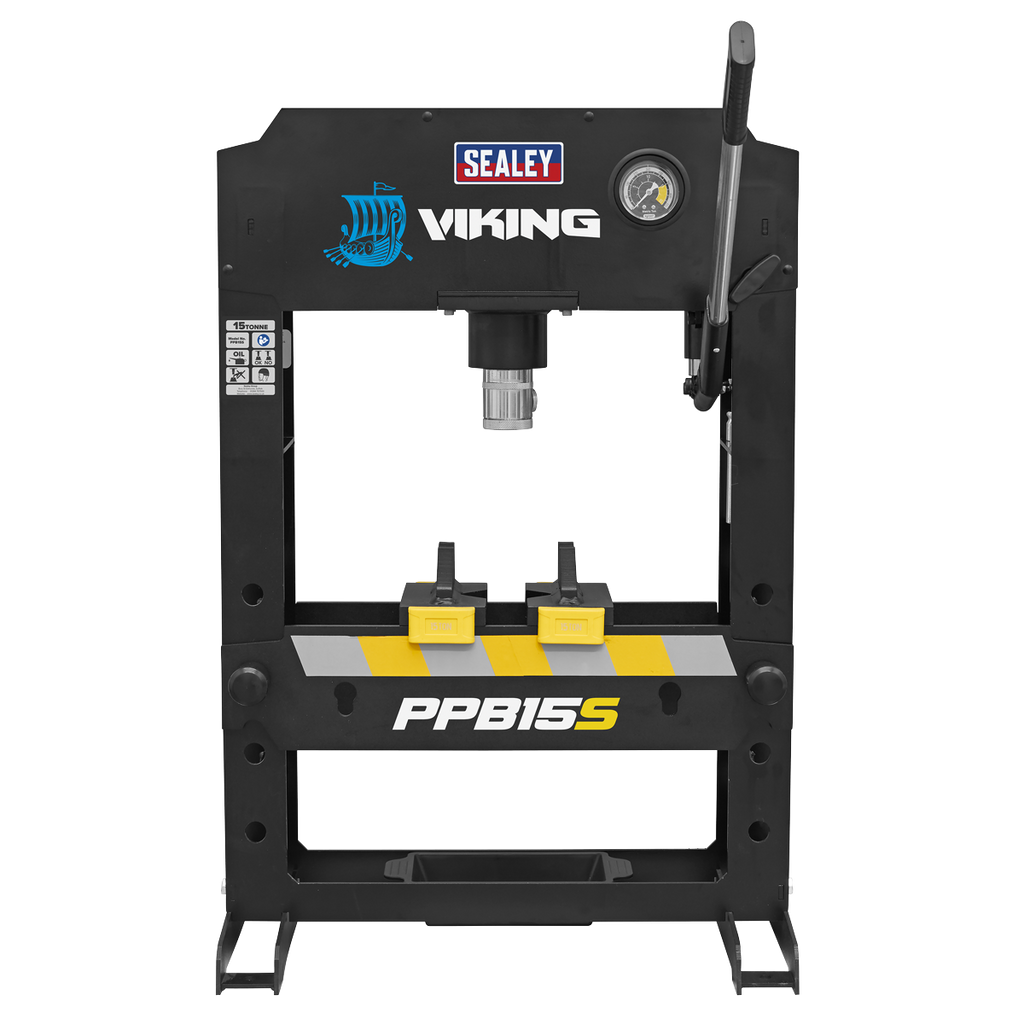

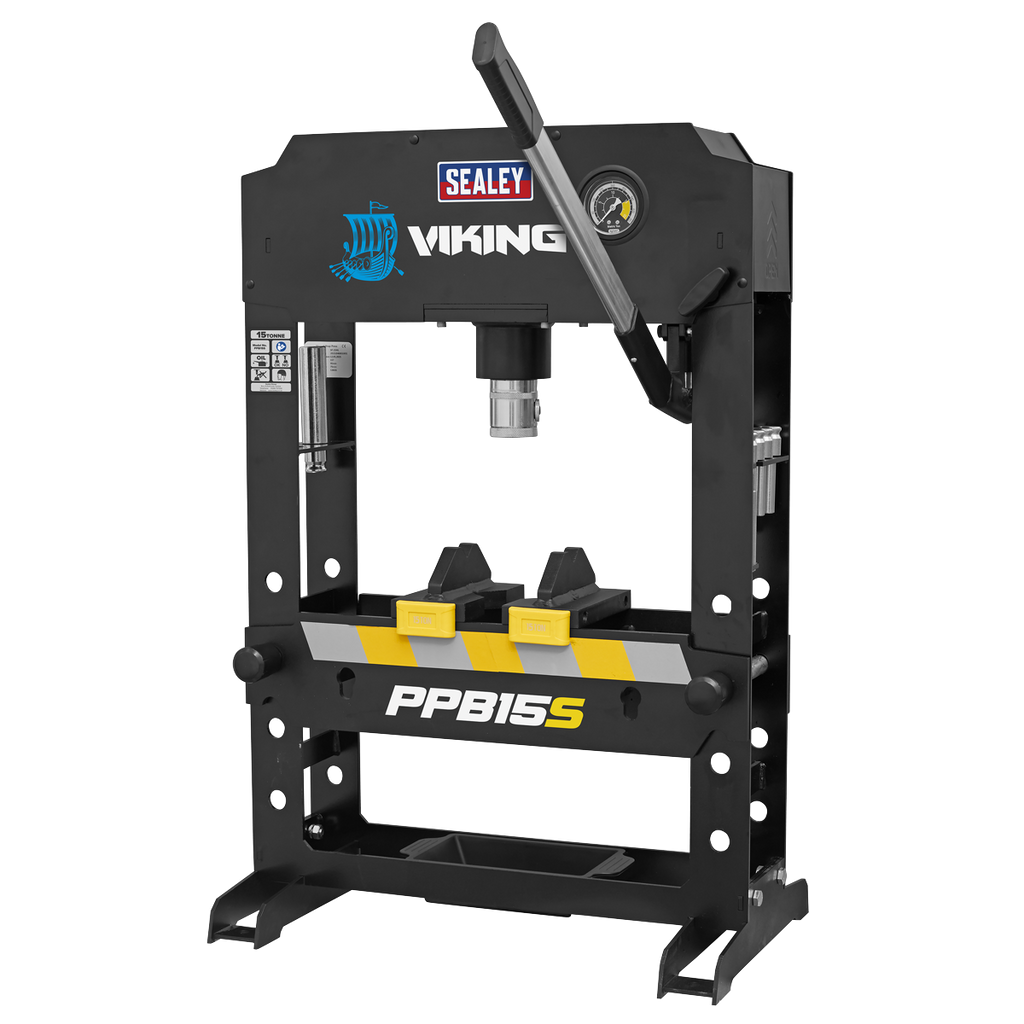

Viking Bench Type Hydraulic Press 15 Tonne PPB15S

Viking Bench Type Hydraulic Press 15 Tonne PPB15S

 Viking Bench Type Hydraulic Press 15 Tonne PPB15S

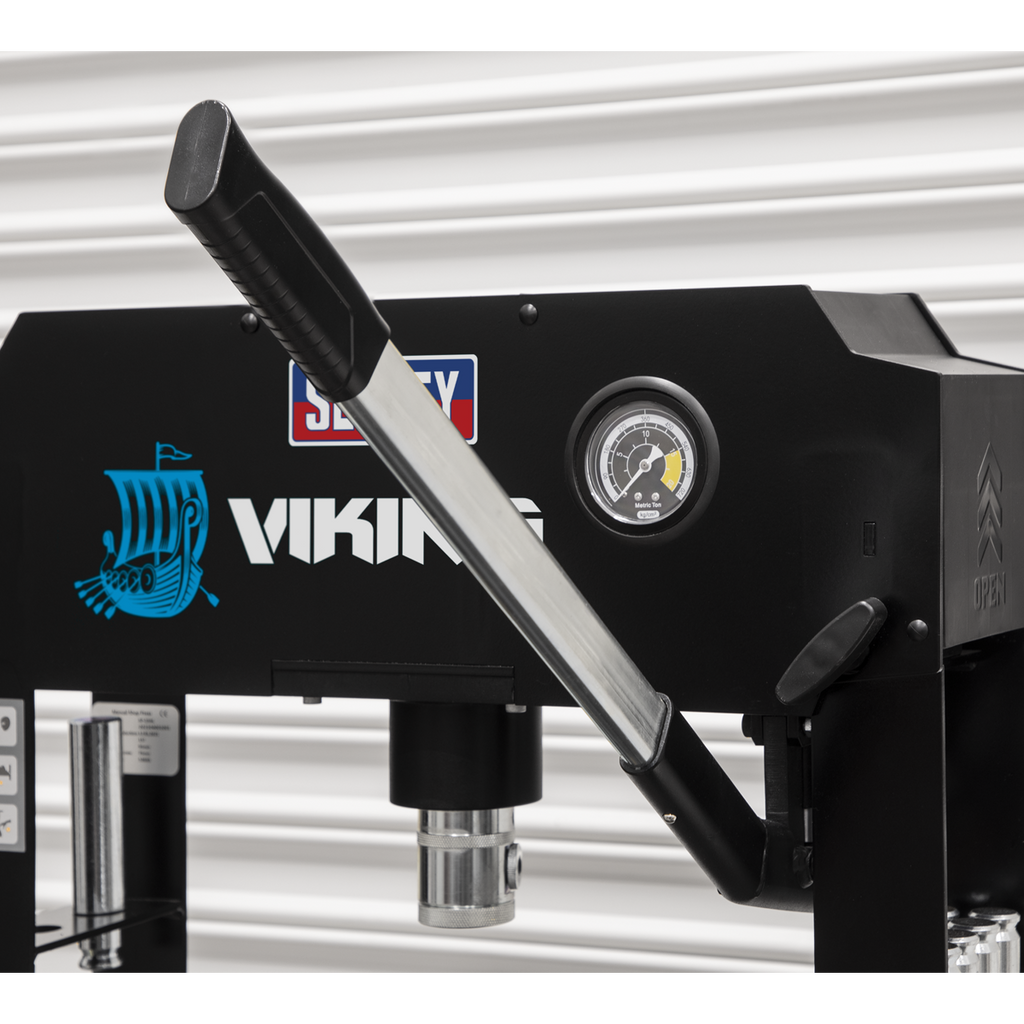

• Heavy-duty steel frame construction with handle operated hydraulic pump unit.

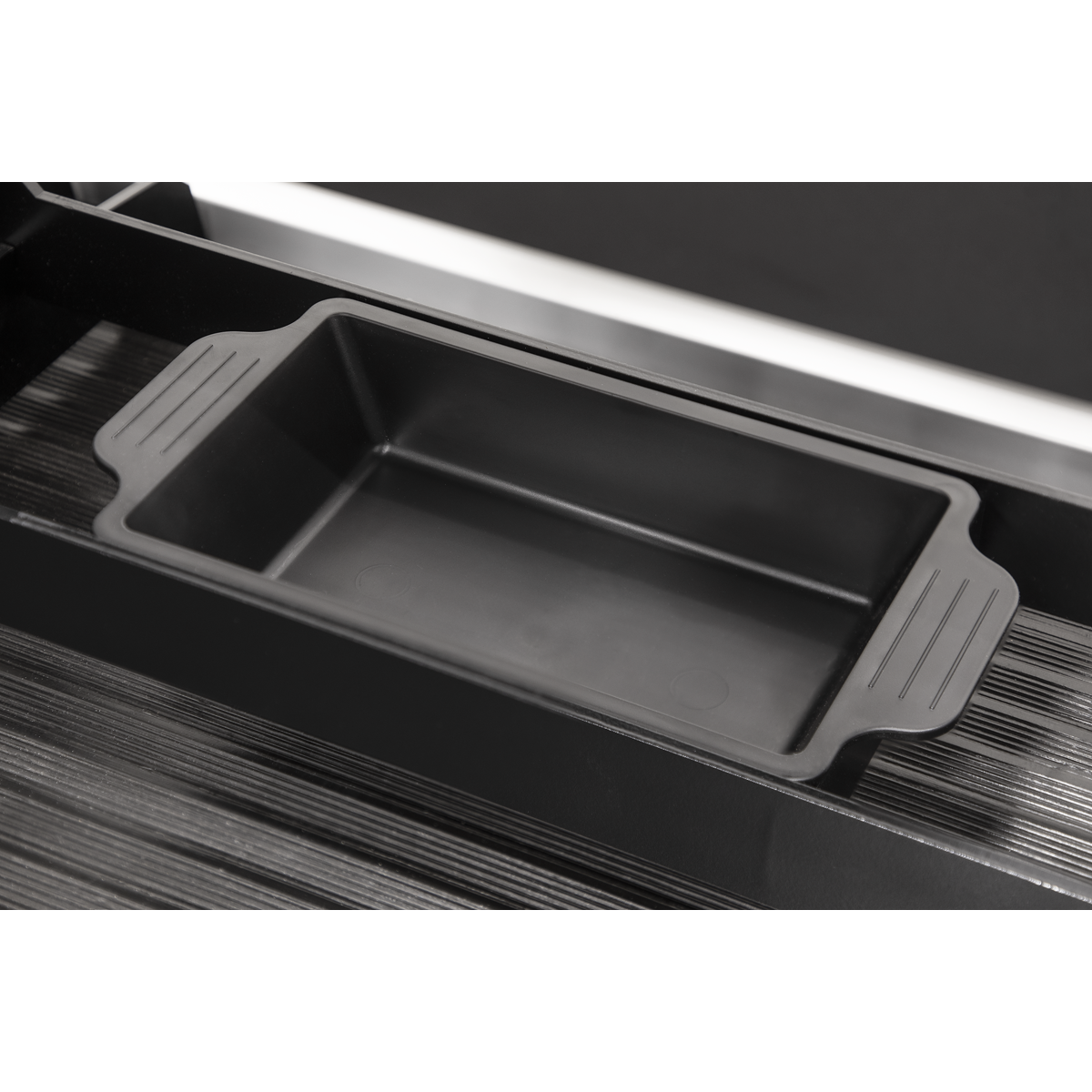

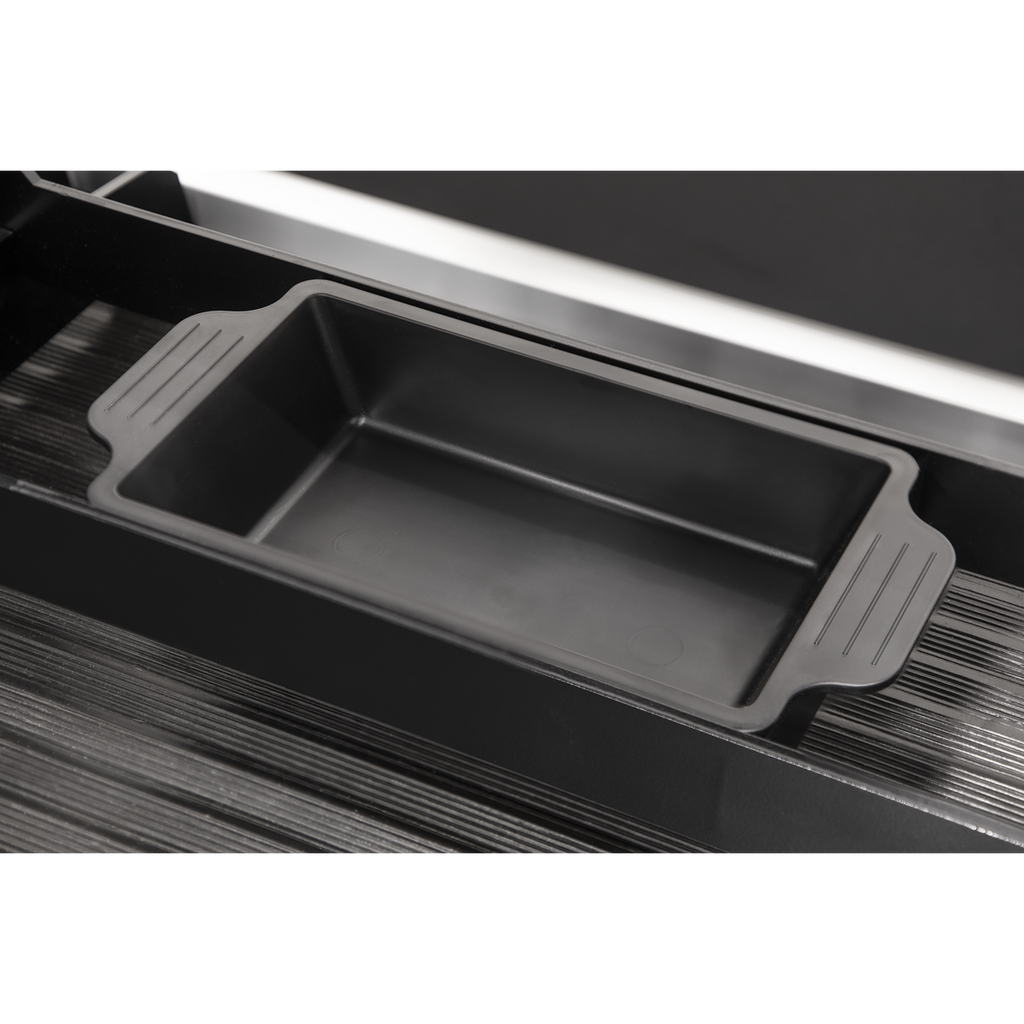

• Screw adjustable ram and adjustable work area with removable tray.

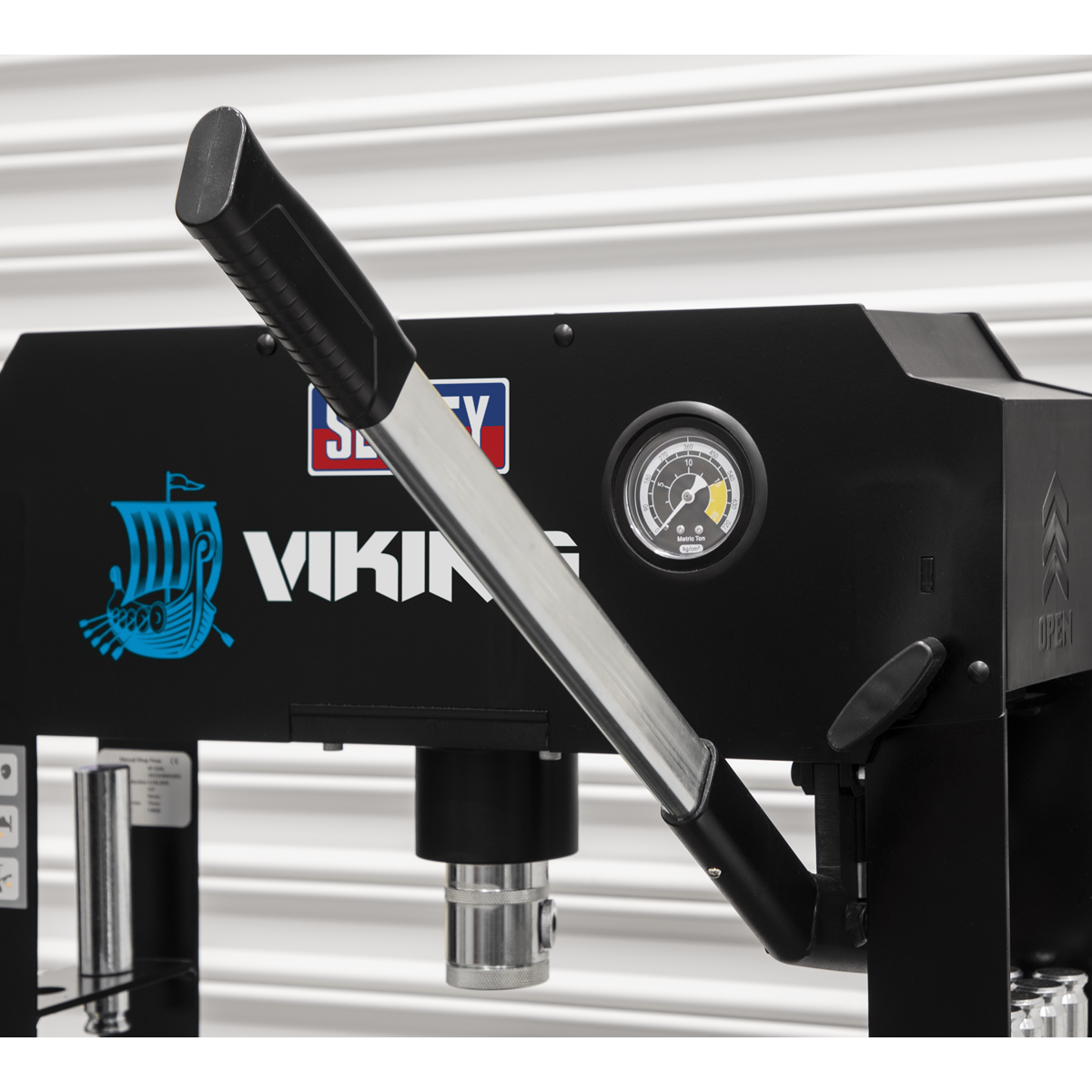

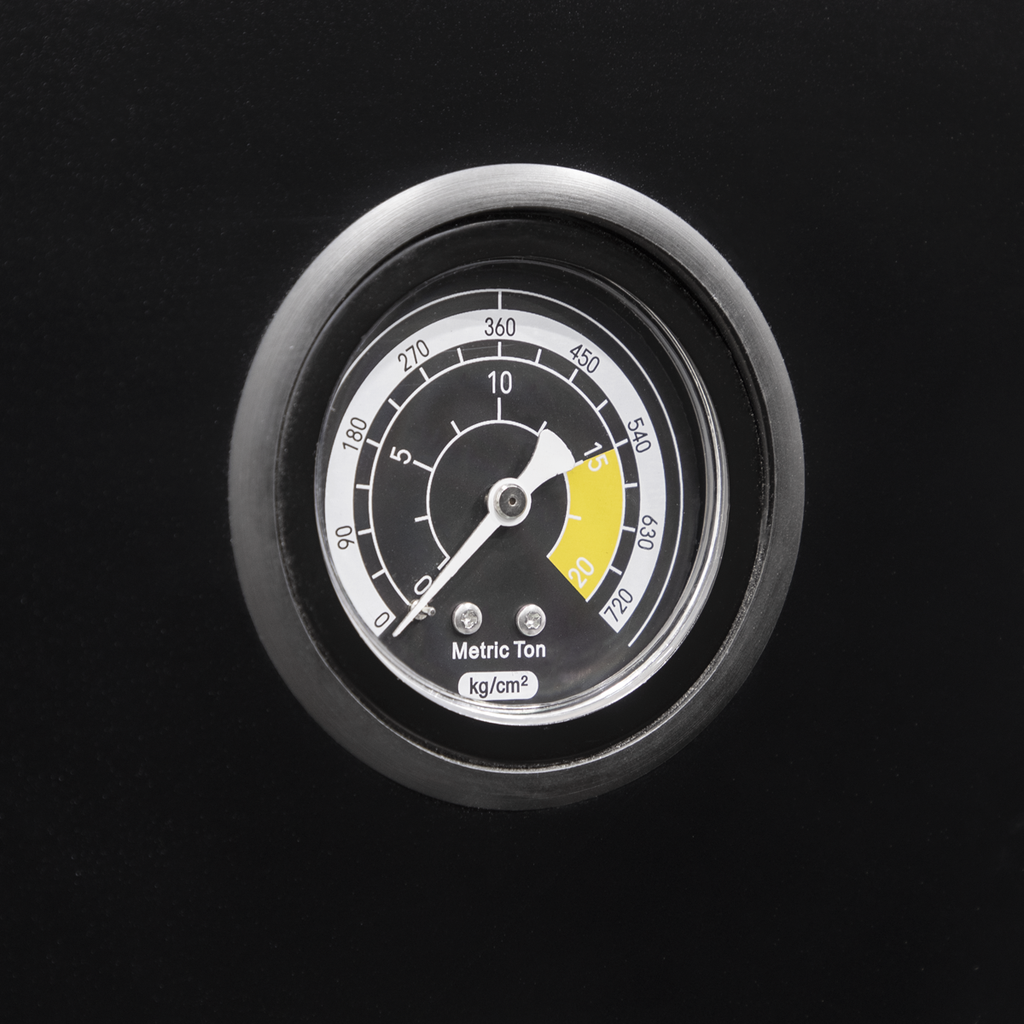

• Frame head fitted with ram pressure gauge.

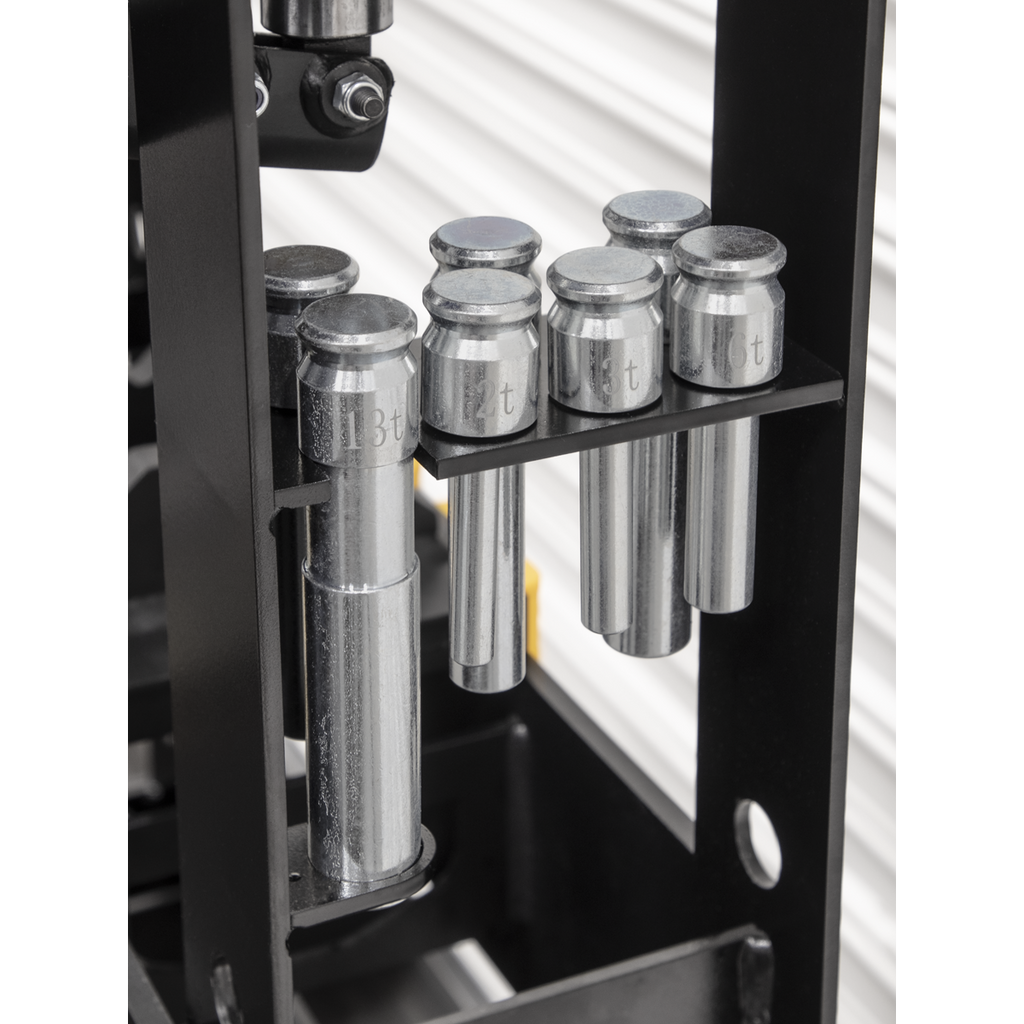

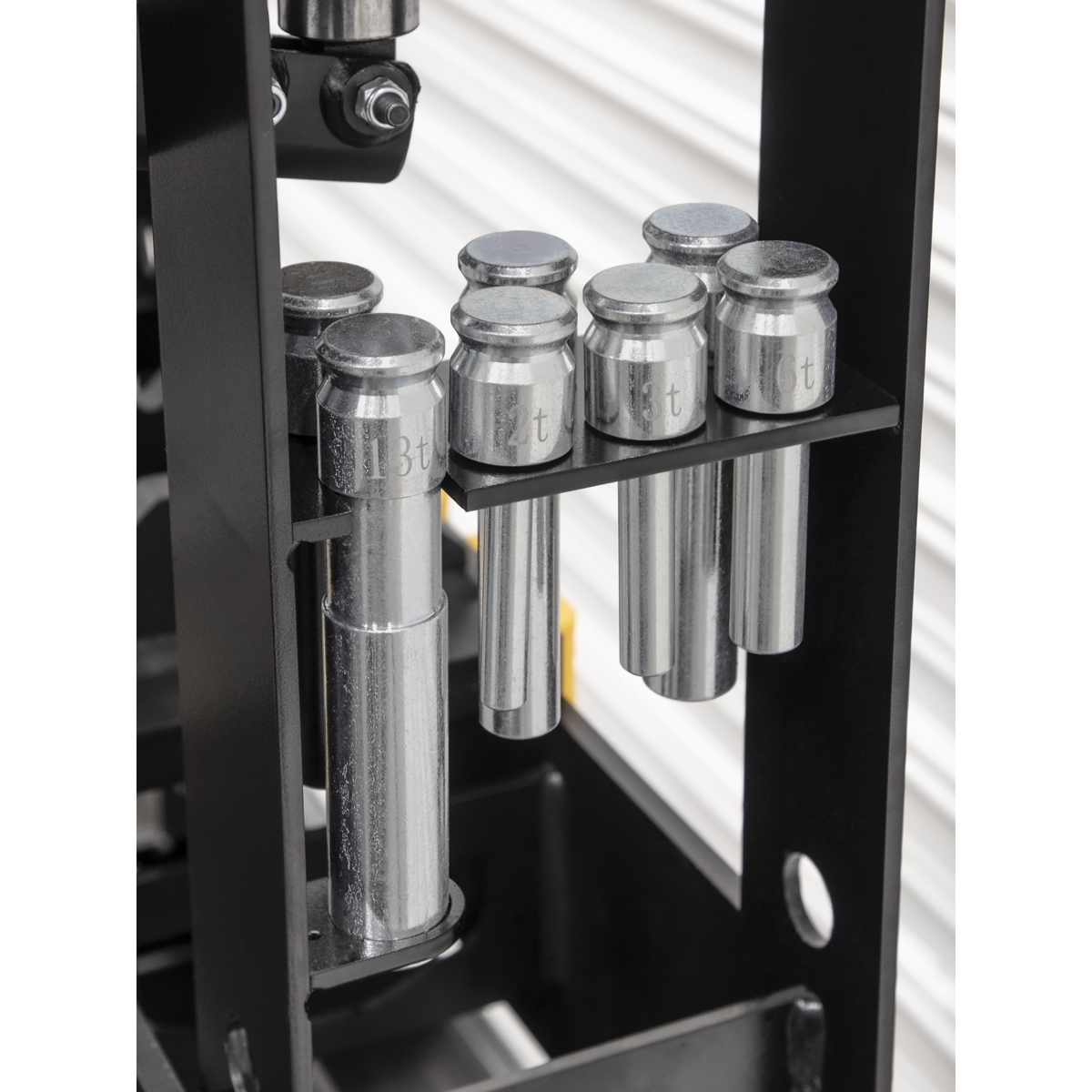

• Storage for press pins included in frame.

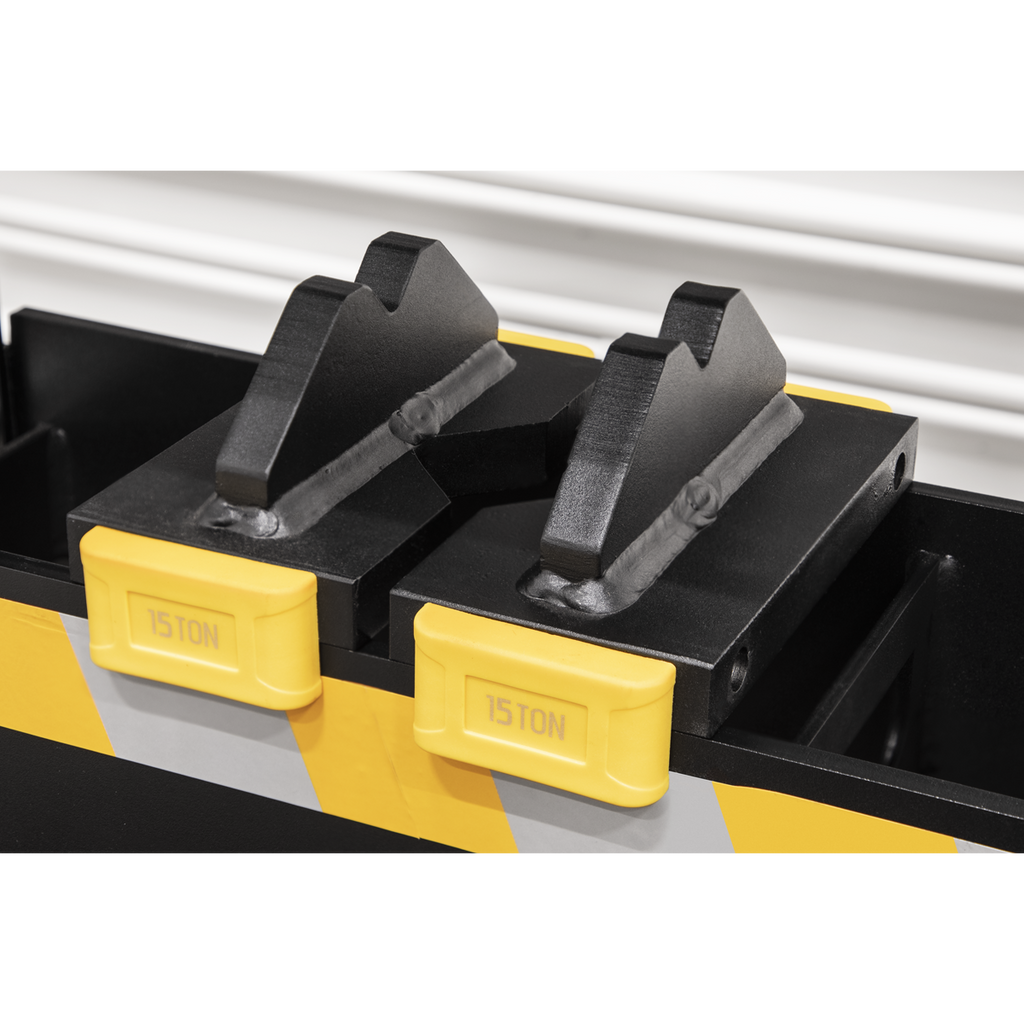

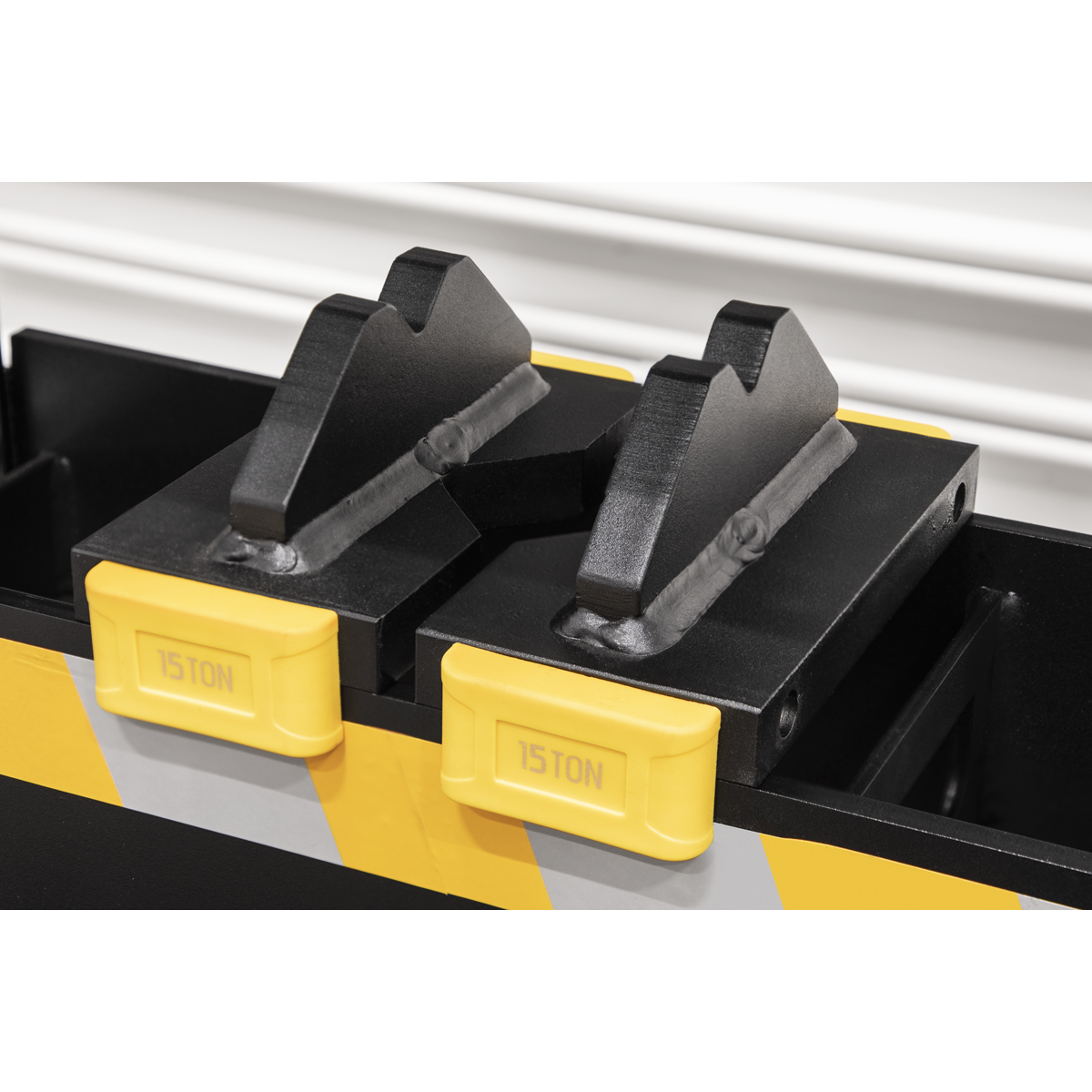

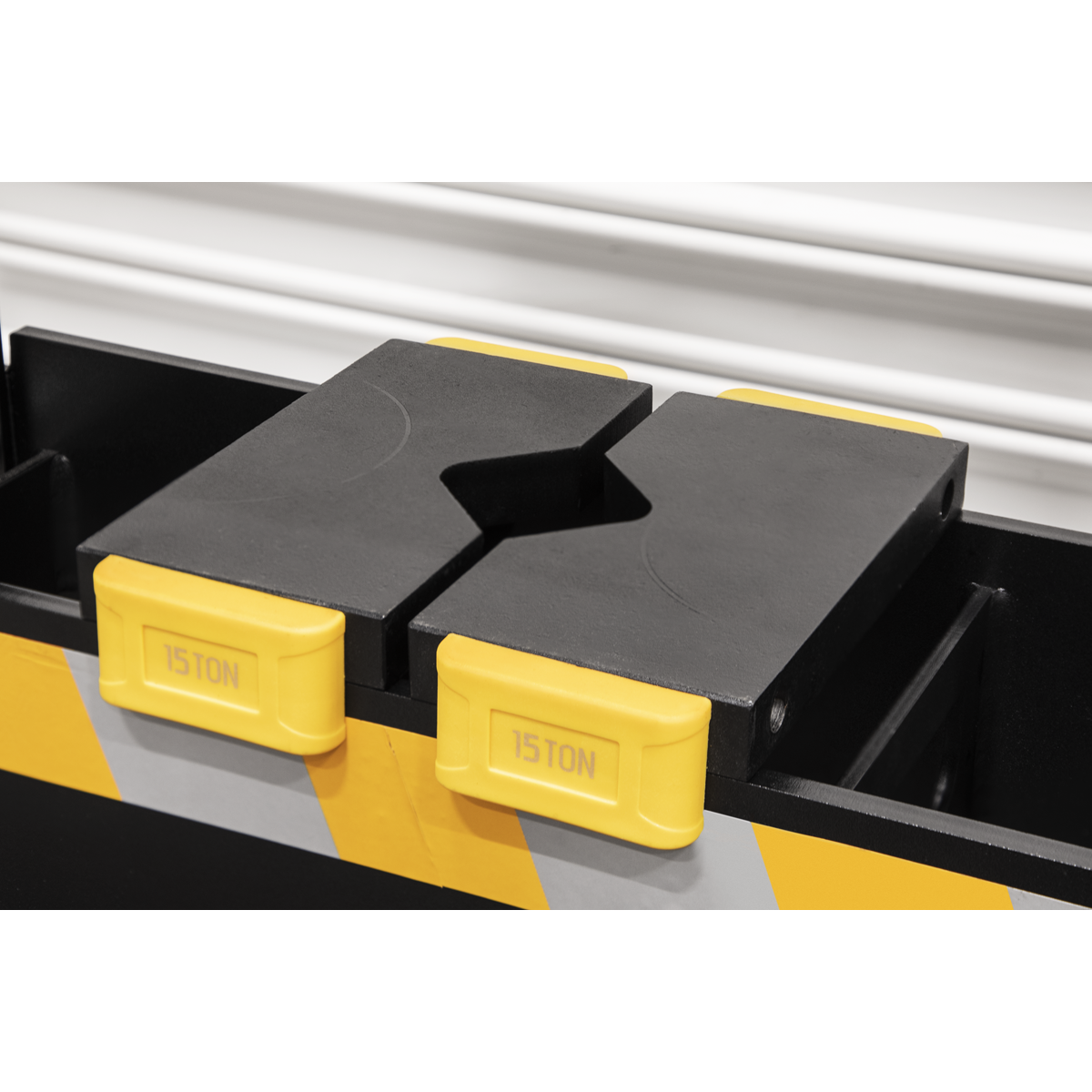

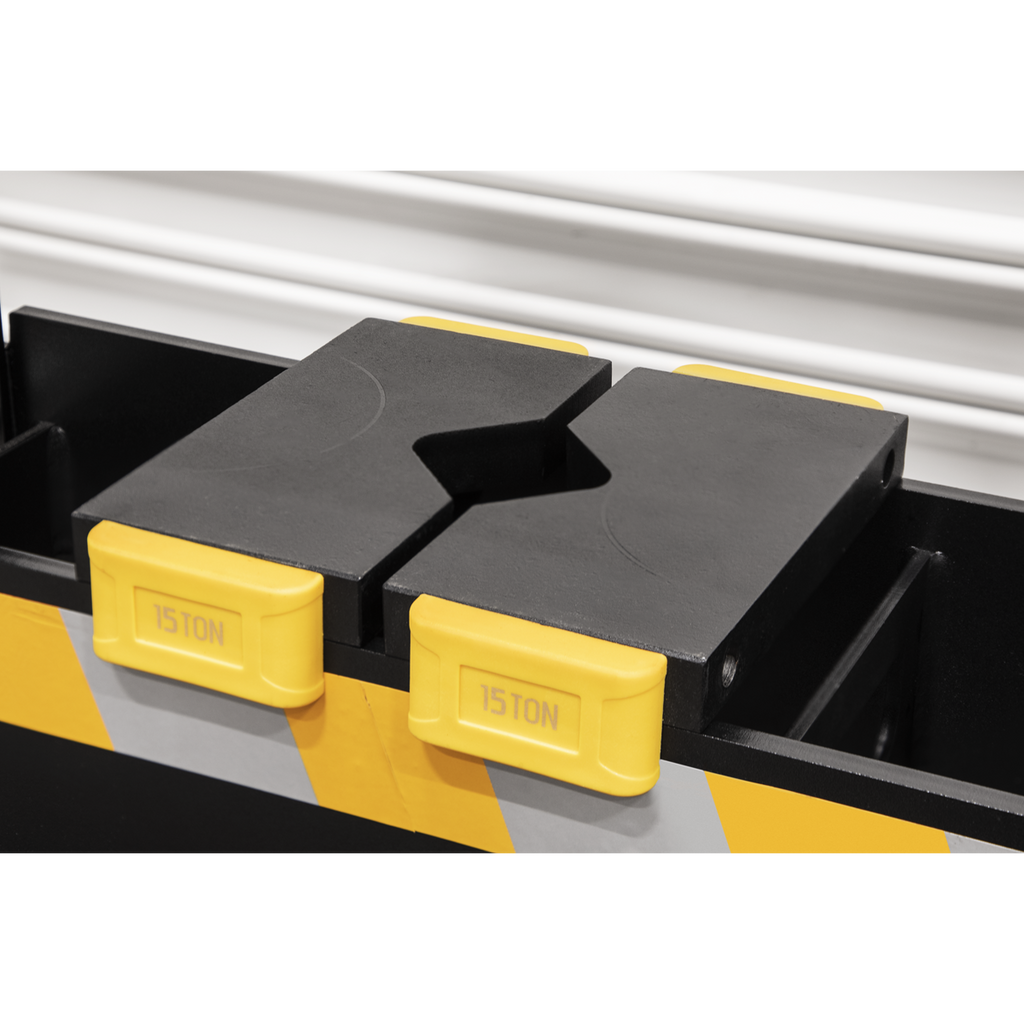

• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Please allow 3 to 5 Business days for delivery

Bench or Floor Mounting:

Bench

Capacity:

15 Tonne

Gauge Included:

Yes

Lateral Ram Travel:

n/a

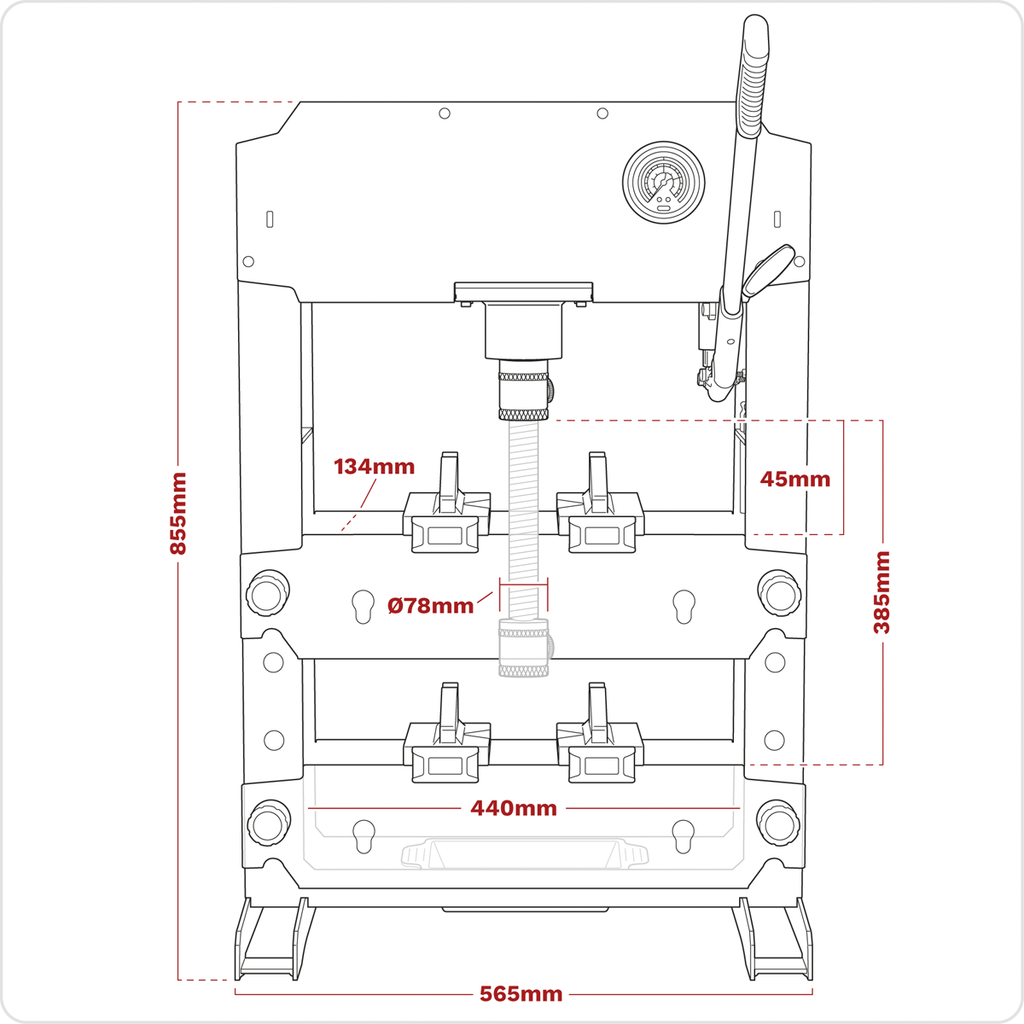

Maximum Height - Ram to Table:

347mm

Minimum Height - Ram to Table:

55mm

Overall Height:

855mm

Overall Width:

565mm

Ram Diameter:

∅79.2mm

Ram Stroke:

170mm

Screw Extension:

75mm

Table Aperture:

147mm

Type:

Bench Type

Nett Weight:

56.3kg

Working Table Depth:

163mm

Working Table Width:

565mm

Barcode:

5054630135491

Safety Data Sheet:

View Document

Declaration of Conformity:

View Document

Parts Diagram:

View Document

Instructions:

View Document

Operating Table Width:

440mm
